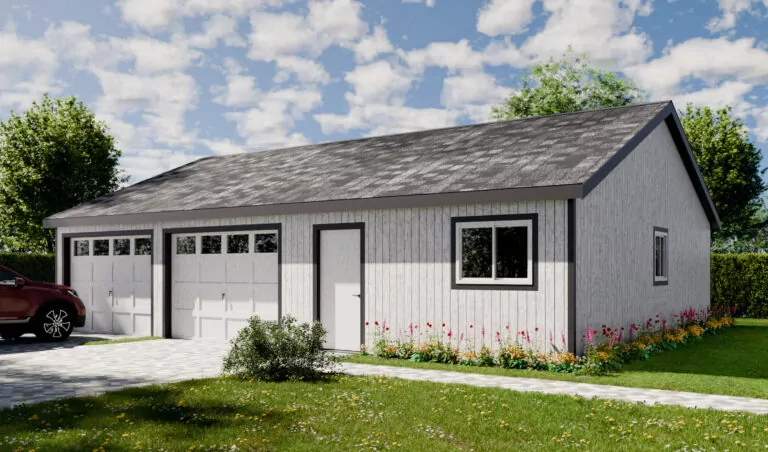

30×40 DIY Garage Shed Plans

Building a massive 30×40 garage and workshop is a serious undertaking that requires precision, and these professional-grade plans provide the exact roadmap needed to transition from a vacant lot to a fully functional, insulated structure. With a footprint spanning 1,200 square feet, this design is engineered for those who need more than just a simple shed. Whether you are looking to house multiple vehicles, set up a professional-grade woodworking studio, or create a climate-controlled storage facility, the comprehensive instructions cover every detail from the heavy-duty foundation to the finished roof cladding.

Heavy-Duty Slab Foundation and Structural Integrity

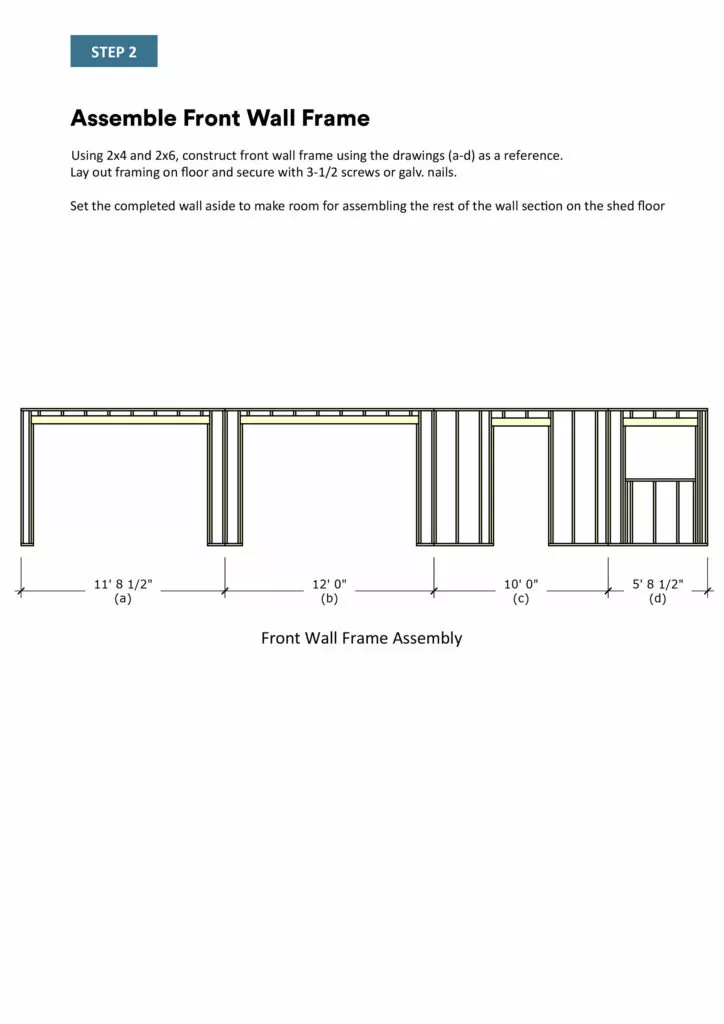

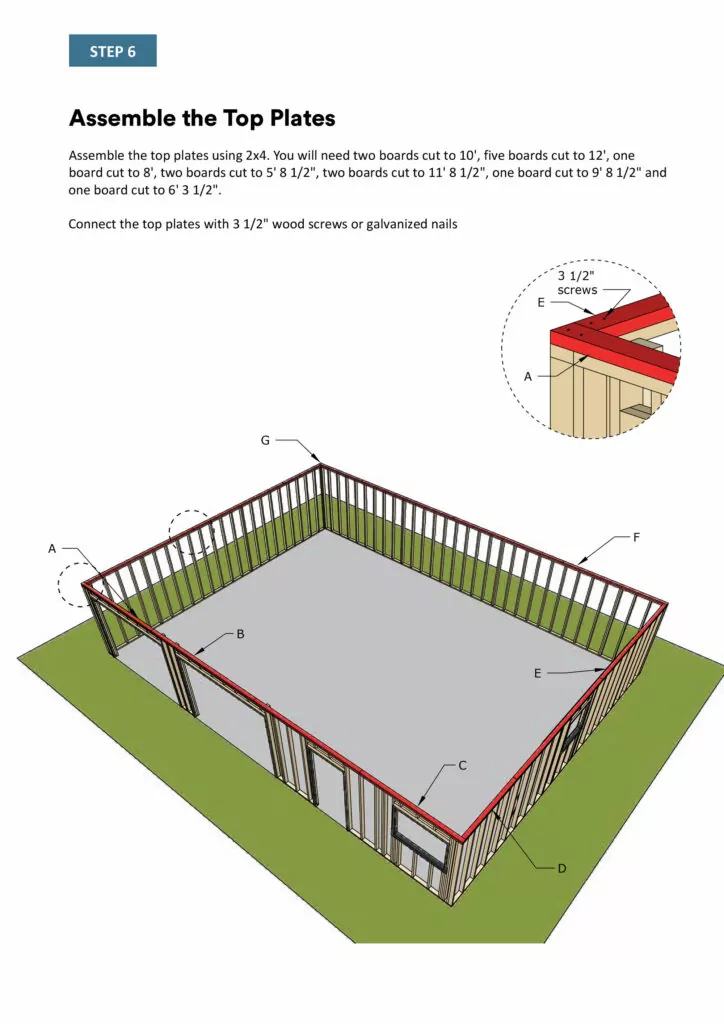

Stability starts from the ground up, and this project calls for a significant 25 cubic yards of concrete to create a robust, permanent foundation capable of supporting heavy machinery and vehicle weight. The framing is designed for long-term durability, utilizing over 120 standard wall studs and a series of specialized common and end trusses to create a clear-span interior. By following the detailed cutting lists for the front and side wall frames, you ensure that every jack stud and door header is perfectly positioned to handle the structural load of the 30-foot residential common trusses.

Weather-Shielded Roofing and Year-Round Insulation

To protect your equipment and vehicles from the elements, the plan specifies a comprehensive roofing system covering 1,400 square feet. This includes high-performance asphalt shingles laid over building paper, finished with a 42-foot ridge cap and 151 feet of metal drip edge to manage water runoff effectively. For those planning to use the space as a year-round workshop, the data includes over 700 square feet of insulation and 918 square feet of vapor barrier. When paired with the 31 sheets of wall gypsum, you can create a finished, thermal-efficient interior that remains comfortable in both the heat of summer and the dead of winter.

Dual Garage Access and Natural Lighting

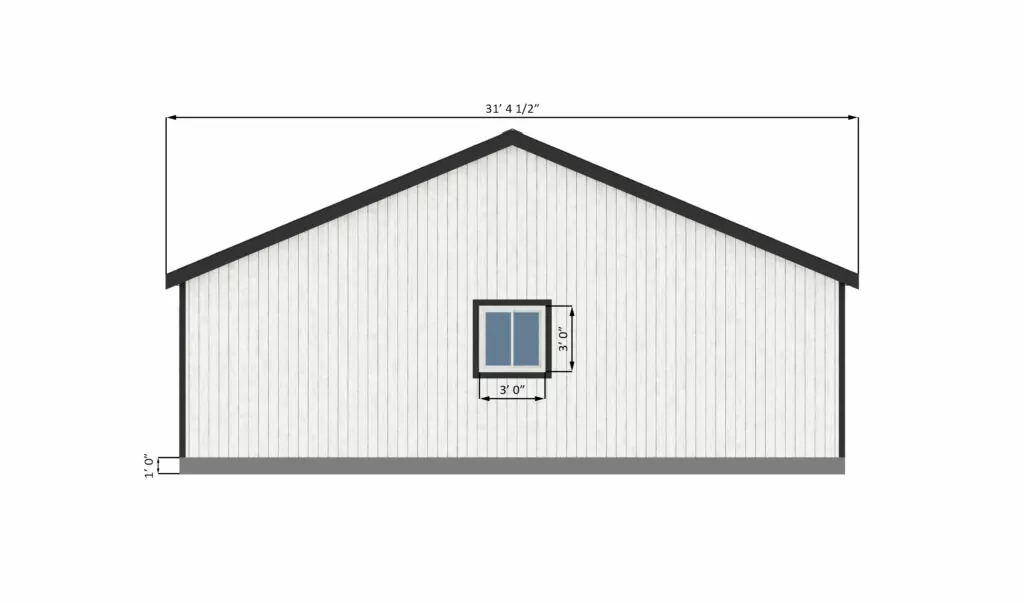

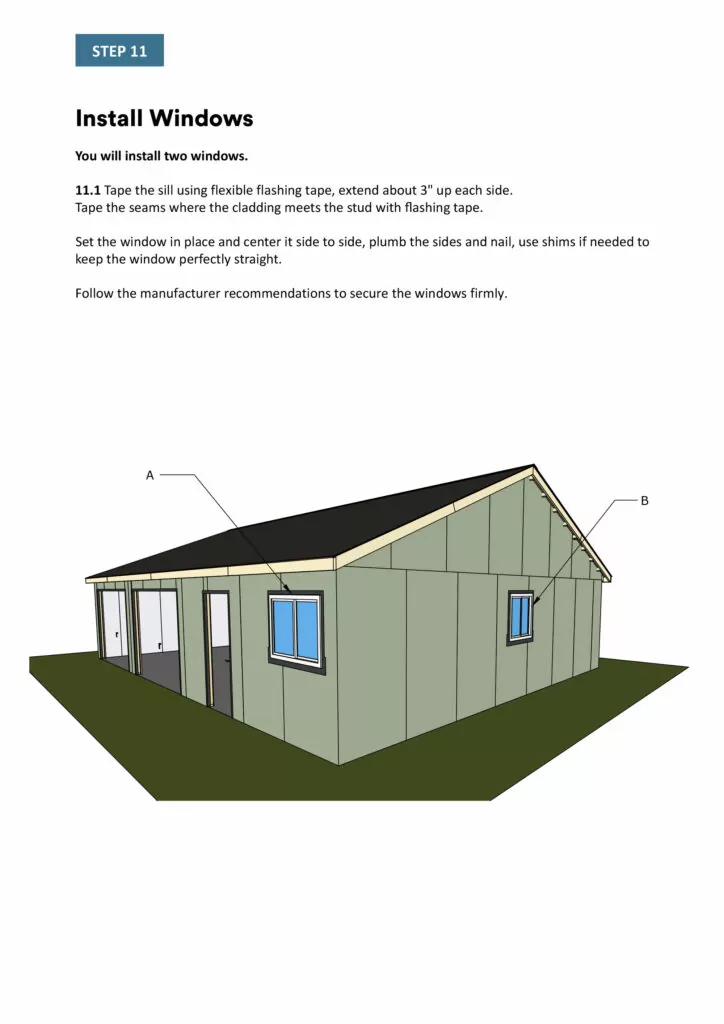

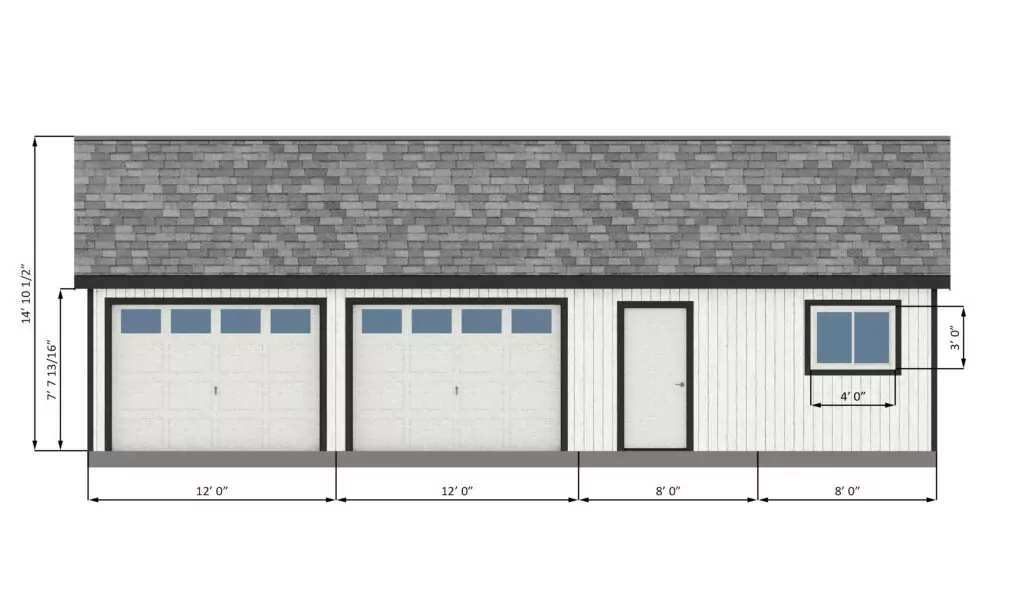

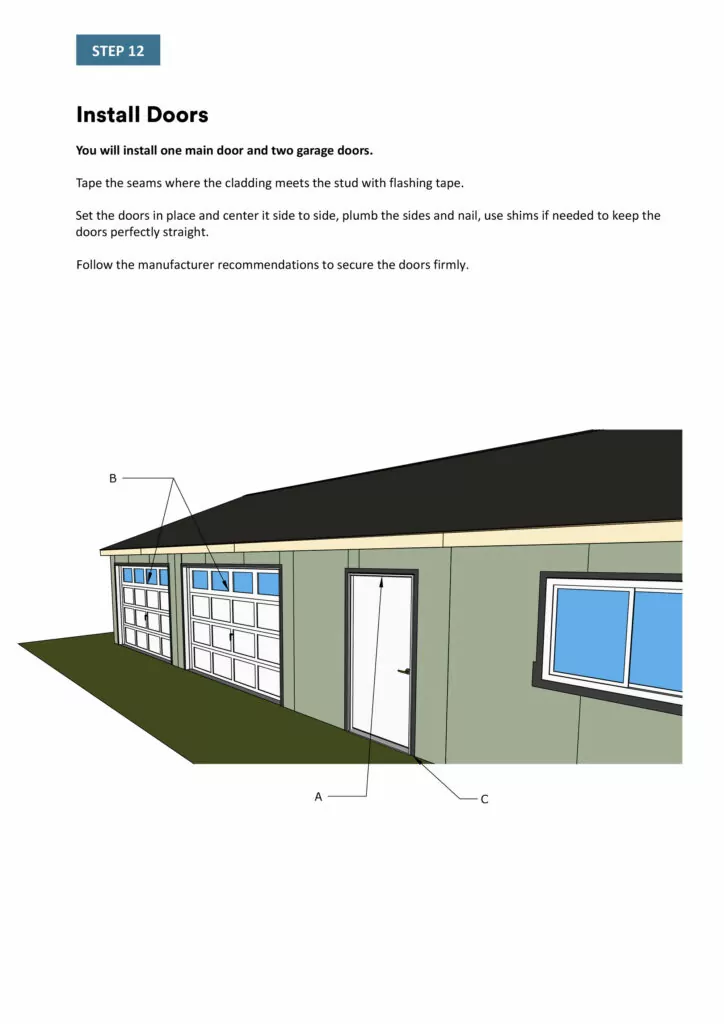

Functionality is at the forefront of this 30×40 layout, featuring two 10-foot by 7-foot overhead garage doors that allow for easy vehicle rotation and equipment movement. A separate residential-style entry door provides quick access without opening the main bays, while strategically placed 3×3 and 4×3 windows ensure the interior receives plenty of natural light. The exterior is finished with 45 sheets of smart siding and a comprehensive trim package, including 151 feet of flashing tape to ensure all openings are completely watertight and professional in appearance.

This 30×40 garage shed is a versatile addition to any property, offering enough clearance and floor space to serve as a multi-car garage, a massive hobby shop, or a dedicated warehouse for a home-based business. With its residential-grade truss system and fully insulated walls, the building can easily be adapted into a gym, a large-scale art studio, or a secure collector’s gallery.
