12×24 Gable Roof Garage Shed Plans

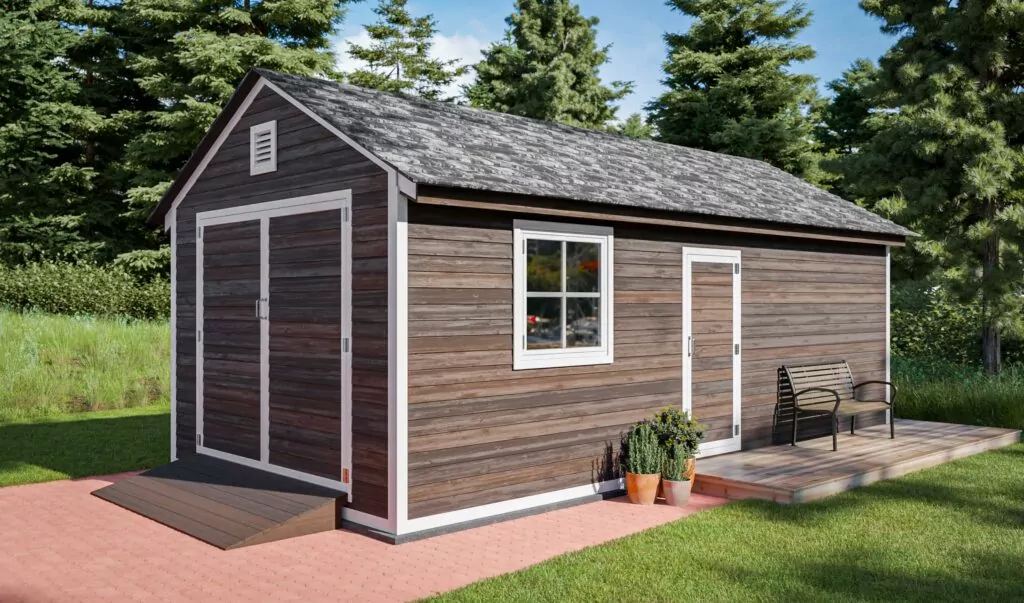

This comprehensive 12×24 garage shed plan provides the technical foundation for a substantial backyard structure that functions as both a high-capacity workshop and a dedicated vehicle or equipment bay. Designed with a classic gable roof and a footprint spanning 288 square feet, this build offers enough volume to house a full-sized vehicle while leaving ample perimeter space for a permanent workbench and tool storage. The dual-entry design—featuring a wide 8-foot main garage door on the gable end and a secondary side-entry door—ensures easy access for both heavy machinery and daily foot traffic. With an overall height of nearly 12 feet, the interior provides significant vertical clearance, allowing for the installation of overhead storage racks to keep your floor space clear of seasonal clutter.

Heavy-Duty Infrastructure and Foundation Requirements

Engineered for longevity, this garage shed is built on a robust foundation that requires over 4 cubic yards of concrete to ensure a level, crack-resistant slab capable of supporting significant weight. The structural integrity is further reinforced by a specialized drainage and perimeter system utilizing 300 clay bricks, providing a professional-grade base that protects the lower framing from ground moisture. To keep the interior bone-dry through the seasons, the plan specifies a comprehensive moisture barrier including 12 rolls of building paper and a metal drip edge system. The exterior is designed for complete weatherproofing, requiring 400 square feet of asphalt shingles to cap the gable roof, ensuring your vehicles and power tools remain protected from the elements for decades.

Professional Grade Hardware and Ventilation Details

Precision is at the heart of this construction guide, which tracks every essential fastener needed to complete the 24-foot long structure. The build calls for a staggering 5,600 galvanized nails and over 5,400 specialized wood screws of varying lengths to ensure every stud, rafter, and joist is locked into place with industrial-strength rigidity. Ventilation is expertly handled by a pair of 12×12-inch wood louvered gable vents, which promote constant airflow to prevent heat buildup and wood rot. Natural light is integrated through multiple window placements, including a large nearly 3-foot square glass pane, transforming the space from a dark storage unit into a bright, functional environment for automotive repair or woodworking projects.

This 12×24 garage shed can be used as a primary vehicle garage, a spacious professional woodworking shop, or a high-end storage facility for boats and lawn tractors.
