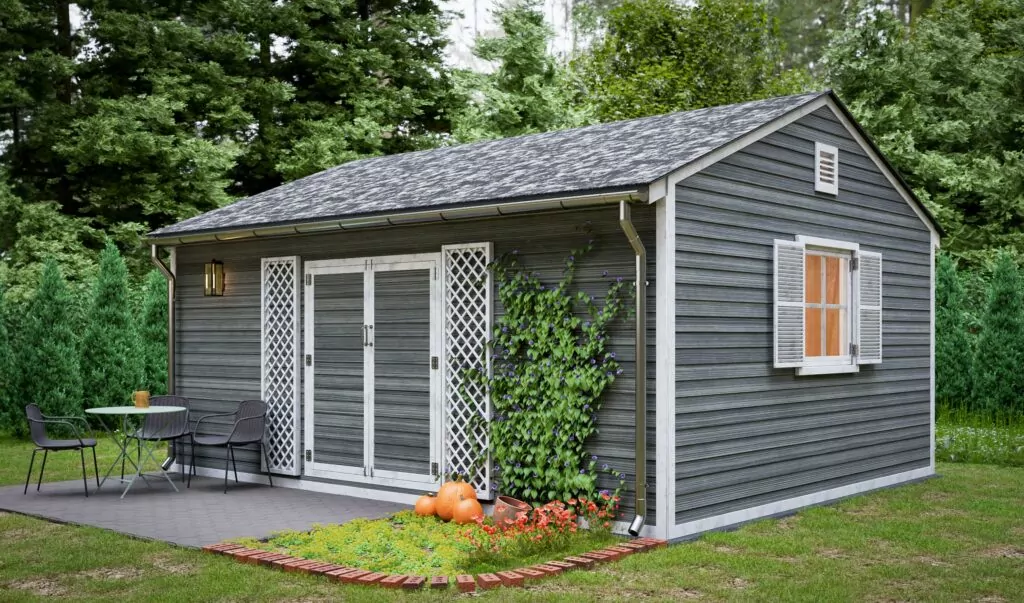

16×20 Workshop Shed Plans Gable Roof

Building a permanent, professional-grade backyard structure requires more than just a basic footprint; it requires a comprehensive roadmap. This expansive 16×20 garden shed plan provides a masterclass in traditional framing and masonry integration, designed for the DIYer who wants a structure that feels like a natural extension of their home. With nearly 12 feet of vertical clearance and a wide 20-foot profile, this design moves beyond simple storage and into the realm of a functional workshop, high-end studio, or a substantial detached home office. The detailed instructions guide you through every phase of construction, from the initial site preparation to the final aesthetic trim work.

Industrial-Grade Foundation and Masonry Detailing

Stability is the core of this design, utilizing over four cubic yards of poured concrete to create a rock-solid base capable of supporting heavy machinery or extensive storage racks. The architectural interest is elevated through the integration of 230 clay bricks, providing a classic aesthetic finish that anchors the building to your landscape. This isn’t a temporary kit; it is a heavy-duty build designed to withstand the elements, featuring a robust floor system with 17 heavy joists and a multi-layered sheathing process that ensures a stiff, resilient floor underfoot.

High-Capacity Gable Roof and Weatherproofing

The classic gable roof design isn’t just for looks – it provides a massive internal volume and efficient water runoff. To protect your investment, the plan specifies 400 square feet of asphalt shingles and a complete metal drip edge system to prevent moisture intrusion at the eaves. The structural integrity is reinforced with a complex rafter system and specialized collar ties, ensuring the roof can handle significant snow loads or high winds. For climate control and longevity, the instructions include a full 12-roll building paper application, creating a continuous weather barrier behind the siding.

Pro-Level Hardware and Functional Access

The front elevation is defined by a generous 5-foot-4-inch wide double-door entry, allowing you to easily move riding mowers, large workbenches, or pallet-sized deliveries in and out without friction. The plan accounts for every high-use touchpoint, incorporating 18 heavy-duty door hinges and a specialized locking system to keep your equipment secure. Natural light and airflow are prioritized through dedicated window placements and dual louvered gable vents, while a comprehensive 18-foot gutter and drainage system ensures that rainwater is diverted away from the foundation, preserving the building for decades.

Versatile Utility for the Modern Homeowner

Whether you need a high-performance woodshop, a dedicated lawn care command center, or a spacious backyard retreat, this 16×20 plan provides the scale and structural detail to make it happen. The massive interior footprint allows for a wide variety of layouts, easily accommodating everything from wrap-around workbenches to heavy-duty shelving units or comfortable office furniture. This project is a rewarding build for those who value architectural quality and long-term durability in their outdoor living space.
