16×20 Backyard Gazebo Plans

Upgrade your backyard with gazebo plans – a spacious, open structure designed for comfort, shade, and everyday outdoor living.

Original price was: $19.99.Current price is: $14.99.

Save 30%-50% vs pre-built gazebos

Full material list & step-by-step instructions

Durable weather resistant design

Instant PDF download – Start build today

Difficulty: Easy Duration: 2 days

60-Day Money-back Guarantee

Description

Enhance your backyard with these 16×20 Pavilion Plans, created for comfortable outdoor living and entertaining. This open timber-frame structure offers a spacious covered area, perfect for dining, relaxing, or gathering with family and guests.

Its open-sided layout promotes natural airflow while providing dependable shade and protection from the elements. Solid wood posts and a simple, refined roof design give the pavilion a timeless look that fits seamlessly into patios, gardens, and landscaped outdoor spaces. The generous footprint allows plenty of room for seating arrangements, dining sets, or an outdoor cooking area.

Designed for flexibility, this structure can function as a pavilion, gazebo, or patio shelter. Whether used as a peaceful escape or a social centrepiece, it brings both visual appeal and everyday functionality to your outdoor environment.

Why Choose Our Gazebo Plans?

Clear Instructions in Imperial and Metric Measurements
Expert Reviewed Structural Specifications
Start Your First DIY Project with Beginner Friendly Plans
Never Miss a Part with Our Complete Material Shopping List
Most Detailed Step by Step Instructions in the Industry
Exclusive Modern Design Features Not Found Elsewhere
Unique Weather Adapted Designs for Year Round Use
The Most Flexible Material Options in DIY Pergola Plans
Highest Rated Pergola Plans by DIY Community

Everything You Need to Build Your Dream Gazebo

Expertly designed

Efficient cutting diagrams that help you maximize your materials and minimize waste while preparing your pieces.

Full list of materials

A comprehensive materials list that outlines exactly what lumber, hardware, and supplies you’ll need to complete the project.

Maintenance Design

Thoughtfully chosen weather-resistant materials, and simplified repair solutions for long-term durability.

Additional information

Essential specifications and building details to help you plan and execute your gazebo project perfectly.

Dificulty	Easy

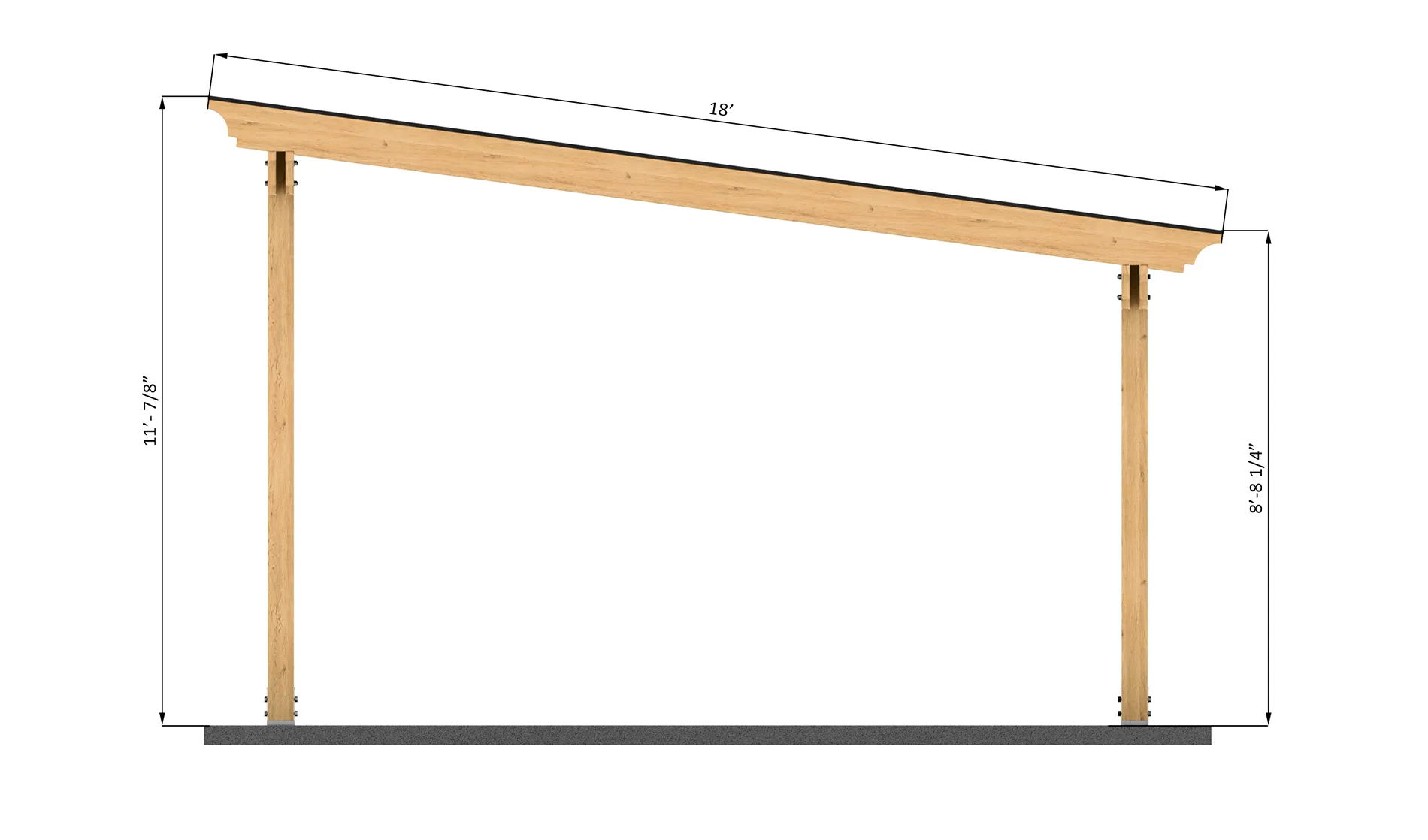

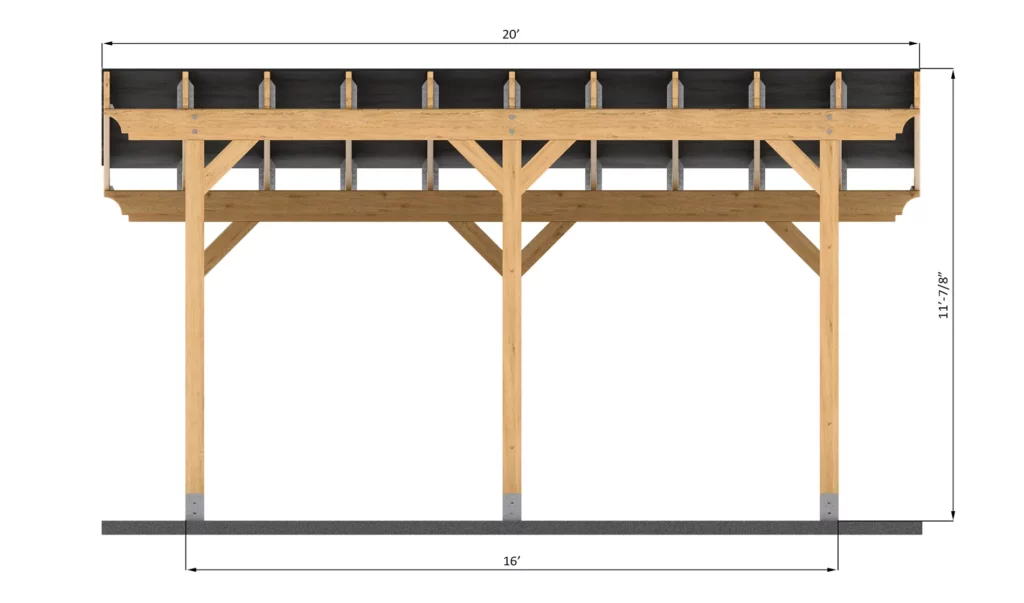

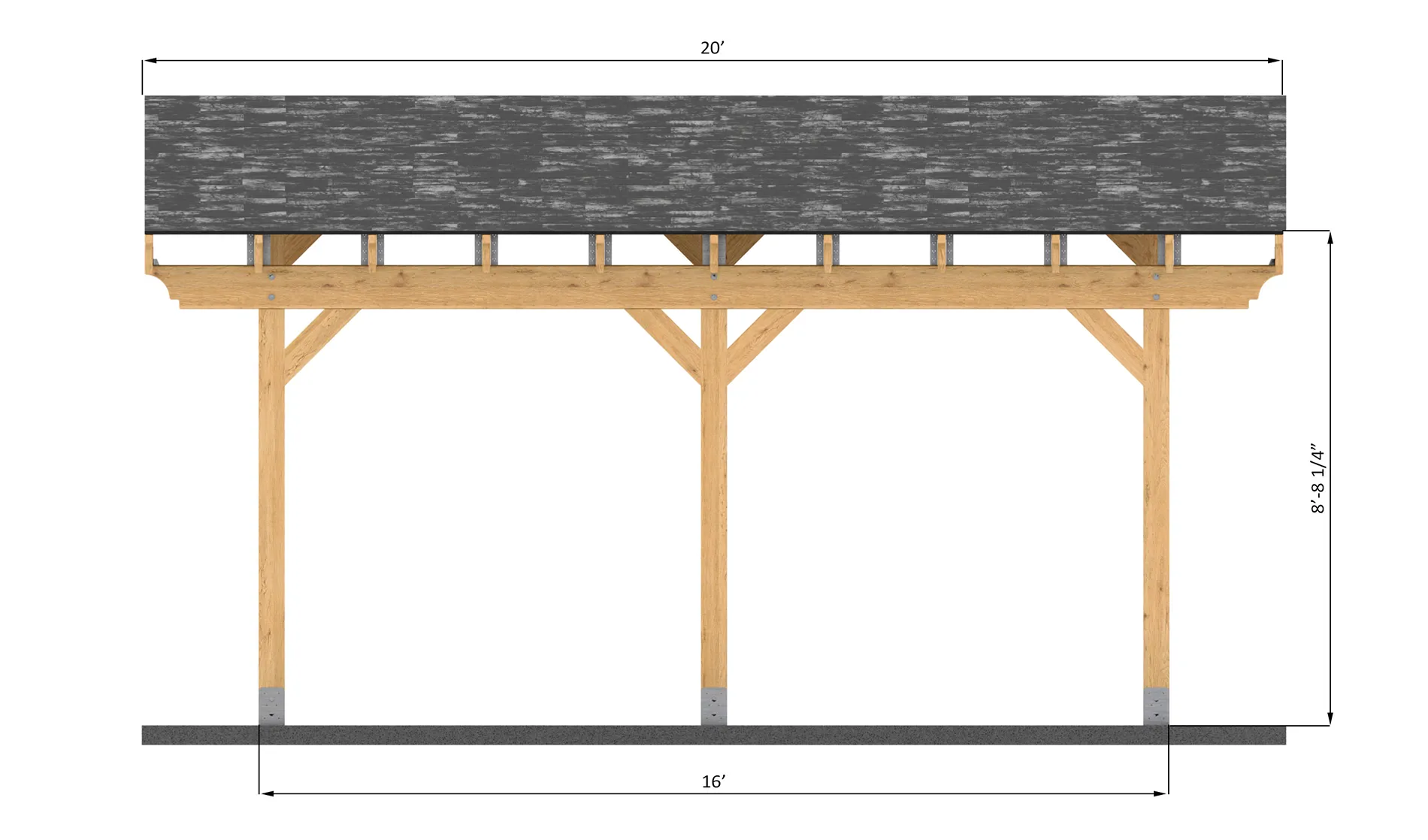

Length	20
Width	16
Height	12
Materials	Wood
Measurement system	Imperial

What Our Customers Are Saying

Real builders share their success stories with our easy-to-follow gazebo plans, helping you build with confidence.

Frequently Asked Questions

1. What format are the plans in?

All our plans are digital PDF downloads. You will receive a link to download your file immediately after purchase. They are designed to be printed on standard 8.5" x 11" paper or viewed easily on a tablet or smartphone while you work.

2. What exactly is included in the plan?

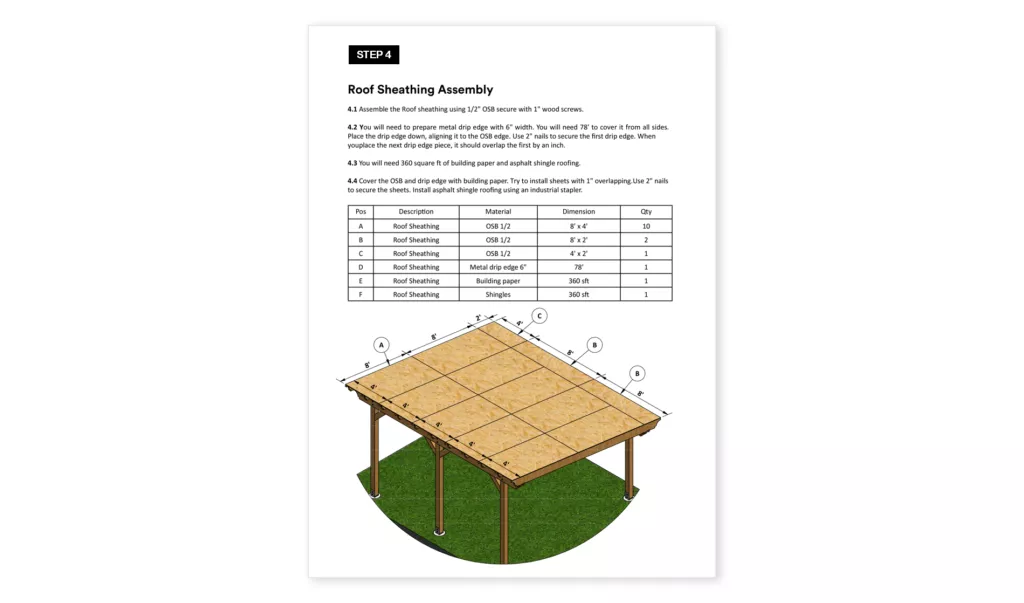

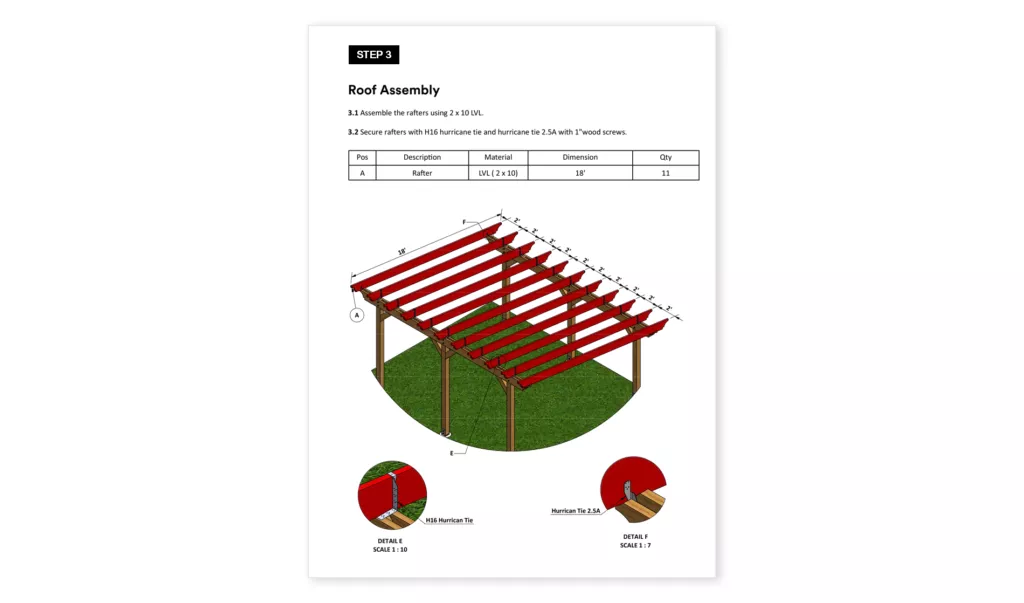

Each plan is a complete "blueprint to build" package. You will receive: 3D Views & Elevations, Step-by-Step Assembly Instructions, a Full Materials List, a Cut List, and a Tool List.

3. Are the measurements in Imperial or Metric?

Our plans use standard Imperial measurements (feet and inches), which is the standard for lumber sold in North America. If you are in a metric region, the dimensions are convertible, but please note that lumber sizes (like a 2x4) are nominal standard sizes.

4. Do I need to be an expert carpenter to build this?

Not at all. We design our plans specifically for the average DIY enthusiast. If you know how to read a tape measure, use a circular saw, and drive screws with a drill, you can build our gazebos.

5. How long does it take to build?

This depends on your skill level and the size of the gazebo. Small or simple gazebos can often be completed in a single weekend with two people. Large or complex gazebos typically take 2–4 weekends to complete.

6. What tools will I need?

You likely have most of them already! You will generally need: a Circular saw (or Miter saw), Power drill/driver, Tape measure, Carpenter's pencil, Level, Speed square, Ladder, Hammer, and Safety gear.

7. Does the purchase price include materials?

No. You are purchasing the digital design plans only. You will need to purchase the lumber, roofing, and hardware separately from your local lumberyard or home improvement store.

8. How much will the materials cost?

Material costs vary wildly by location and current lumber market prices.

9. Do I need a building permit?

Most likely, yes. While small structures are sometimes exempt, regulations vary by city and county. Important: Always check with your local HOA and building department before you start building.

10. Can I modify the size of the gazebo?

Yes, but it requires some math. The plans are scalable, but if you change the dimensions (e.g., stretching a 10x10 to a 12x12), you must adjust your cut list and roof angles accordingly.
