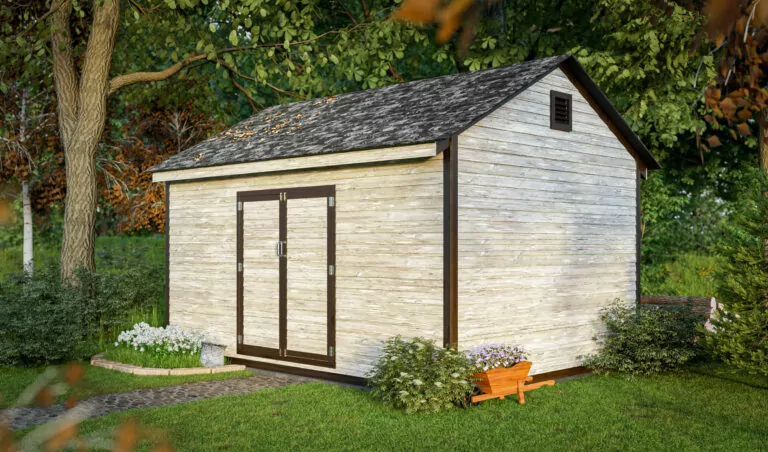

12×16 Gable Shed Plans Tool Storage

Building your own high-capacity outdoor structure becomes a streamlined reality with this comprehensive guide for a 12×16 storage shed. Designed for those who need significant square footage without sacrificing aesthetic appeal, these plans provide a professional-grade roadmap for a massive 192-square-foot building. Standing nearly 12 feet tall at the peak, the structure features a classic gable roof design that ensures maximum vertical storage and excellent snow shed capabilities. Whether you are housing a collection of lawn tractors or setting up a multi-bench workshop, the robust framing and intentional design of this building offer a permanent, rock-solid solution for your property.

Massive Storage Capacity with Heavy-Duty Foundation Specs

A building of this magnitude requires a serious foundation, and these instructions detail exactly how to prepare a site that won’t shift or sag. The plans call for nearly 3 cubic yards of concrete and 200 pavers to create a stable, level base capable of supporting thousands of pounds. To ensure the floor remains rigid under heavy equipment, the design utilizes a dense grid of 12-foot joists topped with 8 sheets of thick plywood sheathing. This isn’t just a garden shed; it is a heavy-duty utility building engineered with a total fastener count exceeding 5,000 nails and screws to guarantee structural integrity for decades to come.

Classic Gable Roof Engineering and Weather Protection

The architectural highlight of this 12-foot by 16-foot design is the precisely engineered gable roof system. The instructions guide you through the assembly of a ridge board and 30 individual rafters, creating a vast interior overhead space that feels open and airy. For superior weather resistance, the project incorporates 8 full rolls of building paper and 35 feet of metal drip edge, protecting your investment from the elements. The wide-span double doors provide a 5-foot 4-inch opening, making it effortless to move large items like ATVs, woodworking machinery, or bulk pallets in and out of the space.

Professional Siding and Ventilation Details

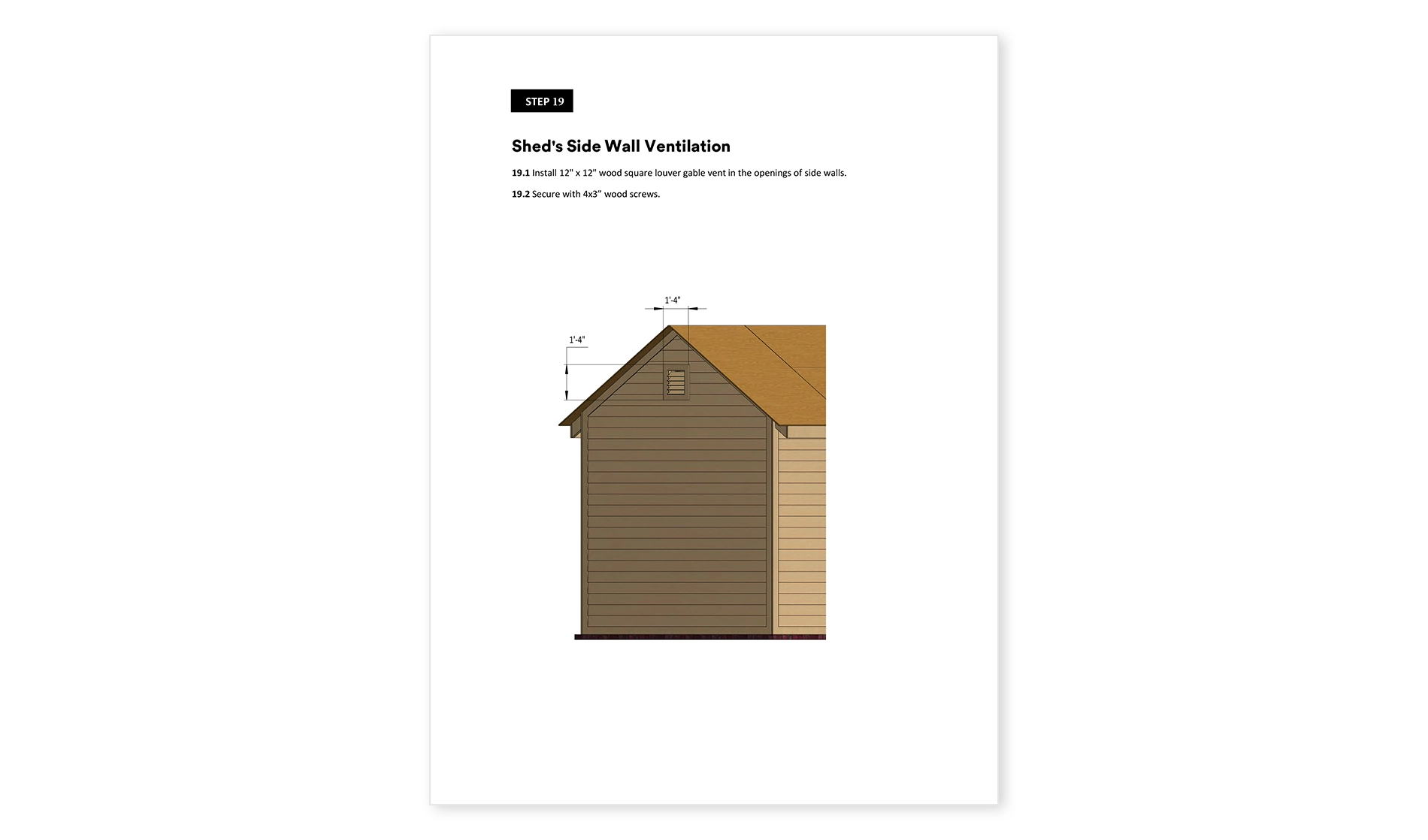

To ensure the building looks as good as it functions, the plans utilize over 300 square feet of wood siding boards for a timeless, high-end finish that complements any backyard landscape. Proper airflow is managed through a dual-vent system, utilizing two 12-inch square louvered gable vents to prevent heat buildup and moisture accumulation. Every detail, from the fascia boards to the starter courses, is documented to help you achieve a polished, “contractor-built” look on a DIY budget, resulting in a versatile 16-foot long structure that significantly increases your property value.

This exact storage shed design also has a variation available with windows. This windowed version transforms the interior with natural light, making the space easily adaptable for use as a Backyard Bar, Photography Studio, Yoga Sanctuary, Bunkie, or a dedicated Hobby Shop. Because the footprint is so generous, you can customize the interior layout to perfectly suit your specific creative or professional needs.
