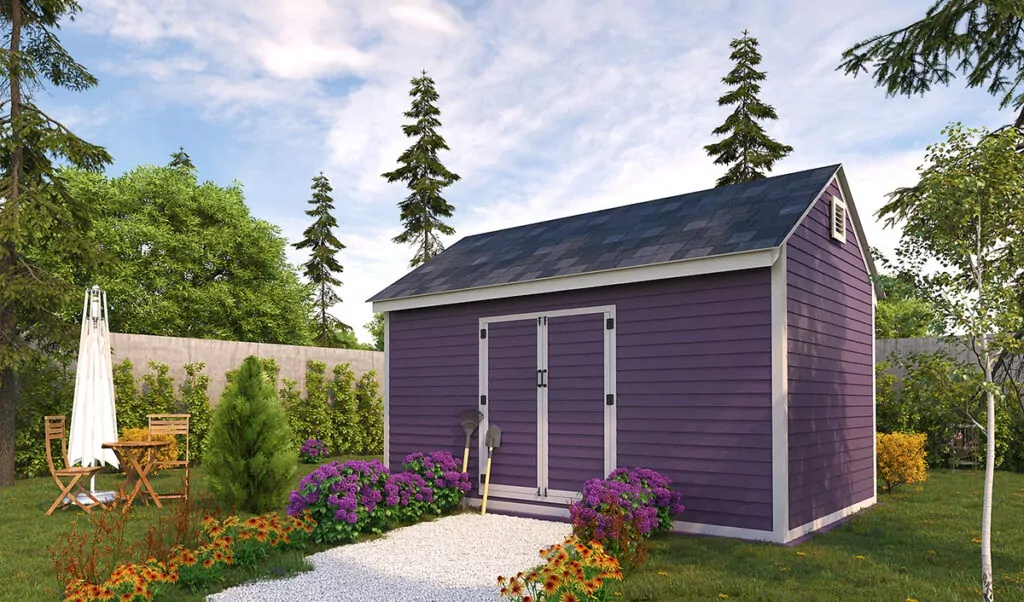

10×16 Gable Roof Storage Shed Plans

Building a professional-grade structure in your backyard requires more than just a rough sketch; it requires a comprehensive roadmap. These premium instructions for a 10×16 storage shed provide everything you need to transition from a cleared patch of dirt to a fully realized, gable-roofed outbuilding standing nearly 12 feet tall at its peak. Designed for homeowners who value structural integrity, this plan utilizes a robust foundation system requiring 3 cubic yards of concrete and 200 clay bricks to ensure your investment stays level and dry for decades. The expansive 160-square-foot footprint is protected by a substantial roofing system that utilizes over 230 square feet of asphalt shingles, providing heavy-duty weather resistance against the elements.

Heavy-Duty Framing and Weather-Ready Exterior

This isn’t a flimsy plastic kit; it is a permanent timber-frame structure designed for maximum utility. The framework is engineered for strength, utilizing a sophisticated system of collar ties, rafters, and a solid ridge board to create an open interior with impressive vertical clearance. To keep the build moving efficiently, the plan includes a precise assembly guide for over 3,000 individual fasteners—including 2,000 galvanized nails and more than 2,000 wood screws of varying lengths—ensuring every joint is rock-solid. The exterior is wrapped in a classic siding aesthetic, finished with detailed trim and functional gable vents to provide the essential airflow needed to prevent moisture buildup and keep your equipment in prime condition.

Optimized Access for Large Equipment

The centerpiece of this design is the oversized double-door entry, spanning over 5 feet in width to accommodate your largest riding mowers, ATVs, or workshop machinery. The doors are reinforced with six heavy-duty hinges and secured with a multi-point bolt system, offering both ease of use and enhanced security for your valuables. Inside, the nearly 10-foot wide interior offers ample room for a longitudinal workbench or floor-to-ceiling shelving units without compromising the central floor space. Whether you are storing seasonal gear or setting up a dedicated workspace, the 10×16 dimensions offer the “sweet spot” of being large enough for serious storage while maintaining a footprint that fits comfortably in most residential yards.

This specific storage shed design also has a variation available that features integrated windows. Because of this windowed option, the interior can be flooded with natural light, making the space easily adaptable as an Art Studio, Home Gym, Potting Shed, Micro Retail Space, or a dedicated Reading Nook.
